CE Certification Medical Transportation Refrigeration Unit Front Mounted with Corrosion Resistant FRP Canning and Inner Grooved Copper Tube Evaporator

  • 1
  • 2

Brand Name : Yinhuasheng/OEM

Model Number : HT-480

Certification : CE

Place of Origin : China

MOQ : 1SET

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Box Volume : ≤18 m3

Temperature Range : -25°C To +25°C

Compressor Model : 5H14

Cooling Capacity (0℃) : 4750W

Compressor Displacement : 135 CC

Cooling Capacity (-18℃) : 2130W

Contact Now

Certification Medical Transportation Refrigeration Unit Front Mounted
Product Overview

The HT480 CE Certification Medical Transportation Refrigeration Unit is a front-mounted system designed for reliable medical transport applications, featuring advanced cooling technology and robust construction.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel with minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance

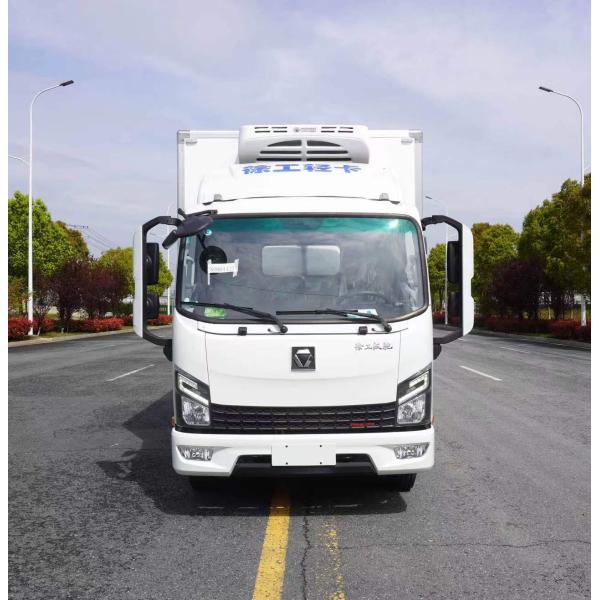

Product Images
CE Certification Medical Transportation Refrigeration Unit Front Mounted with Corrosion Resistant FRP Canning and Inner Grooved Copper Tube Evaporator CE Certification Medical Transportation Refrigeration Unit Front Mounted with Corrosion Resistant FRP Canning and Inner Grooved Copper Tube Evaporator CE Certification Medical Transportation Refrigeration Unit Front Mounted with Corrosion Resistant FRP Canning and Inner Grooved Copper Tube Evaporator
Technical Specifications
Unit Model HT-480
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity 0℃: 4750 W
-18℃: 2130 W
Compressor Model: 5H14
CC: 135 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 26 KG, 1010×640×250 mm
Condenser: 35 KG, 1170×520×415 mm
Drive Model Non-independent engine driven
Important Notes

1. The applicable compartment volume is for reference only, and in actual application, it is related to the compartment volume, insulation performance, environmental temperature, and transported goods.

2. The compressor speed is 2000 rpm, and 12V/24V voltage can be selected according to requirements.

Why Choose Our Refrigeration Units
  • Technological Leadership: Advanced technology and skilled team enabling highest standard design, manufacturing, and innovation
  • Customization Capabilities: Tailored solutions for specific requirements including size, capacity, temperature range, and special needs
  • Quality Assurance: Strict quality control using premium materials and advanced manufacturing processes for reliability and durability
  • Customer Service: Priority on customer needs with excellent service, technical support, timely delivery, and after-sales assistance
  • Energy Efficiency: Advanced energy-saving technologies minimizing consumption while maximizing efficiency and sustainability
