HT-480 Transport Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Vans

  • 1
  • 2
  • 3

Compressor Model : 5H14

Compressor Displacement : 135 CC

Box Volume : ≤18 m3

Temperature Range : -25°C To +25°C

MOQ : 1SET

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Cooling Capacity (-18℃) : 2130W

Cooling Capacity (0℃) : 4750W

Brand Name : Yinhuasheng/OEM

Model Number : HT-480

Certification : CE

Place of Origin : China

Contact Now

HT-480 Transport Refrigeration System Units For Fuel Driven Vans

The HT-480 Transport Refrigeration System is engineered for reliable temperature control in fuel-driven vans, featuring advanced components and safety systems for optimal performance.

Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with large airflow and coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Product Images

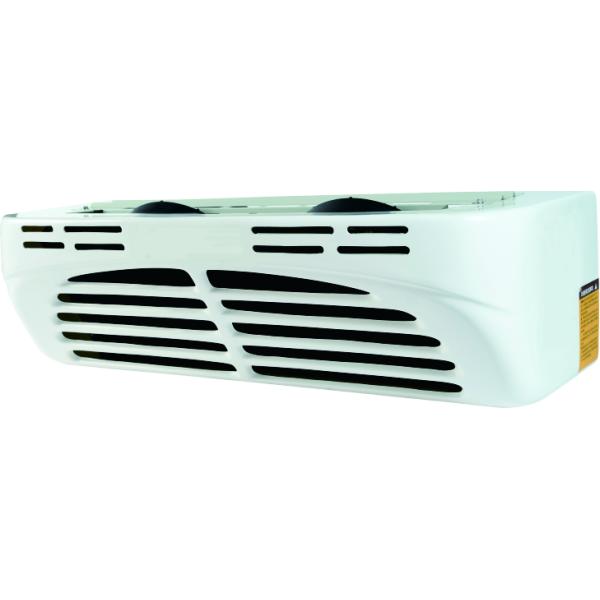

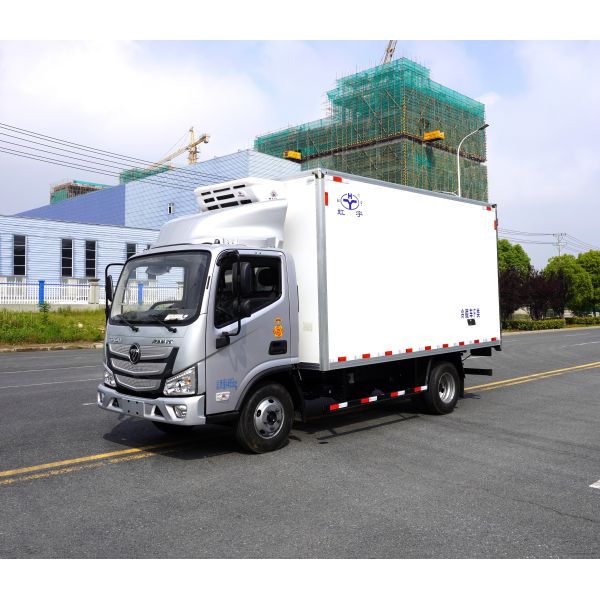

HT-480 Transport Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Vans HT-480 Transport Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Vans HT-480 Transport Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Vans
Technical Specifications
Parameter Specification
Unit Model HT-480
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity at 0℃ 4750 W
Cooling Capacity at -18℃ 2130 W
Compressor Model 5H14
Compressor CC 135 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 26 KG
Condenser Weight 35 KG
Evaporator Dimensions 1010*640*250 mm
Condenser Dimensions 1170*520*415 mm
Drive Model Non-independent engine driven
Important Notes

The applicable compartment volume is for reference only. Actual performance depends on compartment volume, insulation performance, environmental temperature, and transported goods.

The compressor operates at 2000 rpm, with 12V/24V voltage selection available according to requirements.

Why Choose Our HT-480 System
  • Technological Leadership: Advanced technology and skilled team enabling highest standard design, manufacturing, and innovation in truck refrigeration units.
  • Customization Capabilities: Tailored solutions for specific requirements including size, capacity, temperature range, and other special needs.
  • Quality Assurance: Strict quality control using premium materials and advanced manufacturing processes to ensure reliability and durability.
  • Customer Service: Priority on customer needs with excellent service, technical support, timely delivery, and comprehensive after-sales assistance.
  • Energy Efficiency: Advanced energy-saving technologies minimizing consumption while maximizing efficiency, reducing operating costs and supporting environmental sustainability.
